Hot Dipped Galfan Wires (Zn95+Al5%)

HOT DIPPED GALFAN WIRES (Zn95+Al5%)

Zinc-aluminium wire with excellent resistance to oxidation

Main features:
The production of alu-zinc wire is by dipping in a bath of 99.995% pure zinc, followed by a zinc and aluminium bath (Zn 95% -Al 5%).
The use of latest-generation equipment ensures perfect adhesion of the coating and optimal resistance to oxidation. High-purity zinc alloy cantaining 5% aluminium with addition of Mischmetal ( Lanthanium + Cerium)
Main uses:
Farming applications, rockfall mesh, shepherd’s mesh, Armoured electric cables, bent metal elements and Gabions Products.

TECHNICAL SPECIFICATIONS

Coating  Weights Accordance With  EN 10244-2 (gr/m2)

Diameter (mm) CLASS A CLASS AB  CLASS
0.60 ≤ d <1.20 165 115
1.20 ≤ d <1.40 180 125
1.40 ≤ d <1.65 195 135 100
1.65 ≤ d <1.85 205 145 100
1.85 ≤ d <2.15 215 155 115
2.15 ≤ d <2.50 230 170 125
2.50 ≤ d < 2.80 245 185 125
2.80 ≤ d < 3.20 255 195 135
3.20 ≤ d < 3.80 265 210 135
3.80 ≤ d < 4.40 275 220 135
4.40 ≤ d < 5.20 280 220 150
5.20 ≤ d < 8.00 290

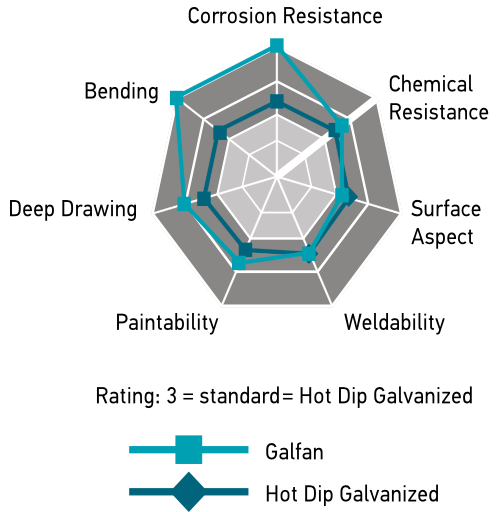

ZN95+Al5 PERFORMANCE

TECHNICAL SPECIFICATIONS



Packing Size And Type Rossetten Coil | Spoling Coil

Type  1 Ø 0,80 mm – Ø 1,60 mm
(Midi Coil)
Ø 1,60 mm – Ø 5,00 mm
(Standart
Coil)
Ø 4,00 mm – Ø 7,50 mm
(Jumbo
Coil)
Inside of Diameter  (ID) (mm) 330 – 350 430 – 470 480 – 520 530 – 570
 Outside Diameter (OD) (mm) 540 – 570 740 – 780 880 – 920 1020 – 1070
Weight  (kg) 250 500 – 750 500 – 1000 750 – 1000
Winding Direction  Unwinding
Anticlockwise
Unwinding
Clockwise
Type  2 Bobin Boyutları Sargı Yönü
Outside diamater (OD) (mm) 800 – 1100 L: Unwinding Left
İnside diameter  (ID) (mm) 580 – 620
Height  (h) (mm) 600 or 750
Weight  (kg) 1000 – 2600
Type  1 Type 2 Type 3
Standart Packing Wooden  Packing Spool Packing
İnside Diameter 600 mm İnside Diameter 600 mm İnside Diameter 250 mm
Outside Dia 750 mm Outside Diameter 1000 mm Outside Diameter 630 mm
Weight max. 2500 kg Height 750 mm Height 450 mm
    Weight 1500 kg Weight max. 2500 kg
